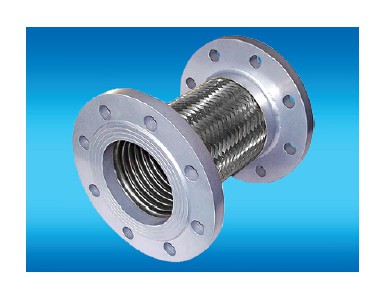

 法蘭式波紋金屬軟管技術參數
|
|||||||
| 公稱 | 公稱 | 軟管代號 | 供貨 | ||||
| 通徑 | 壓力 | 平焊 | 一端平焊法蘭 | 不銹鋼松套 | 凹凸面 | 兩端凸面 | 長度 |
| DN | PN | 法蘭 | 一端松套法蘭 | 法蘭對焊 | 對焊法蘭 | 對焊法蘭 | L |
| mm | Mpa | 連接F | 連接FH | 連接BHF | 連接F2 | 連接F1 | mm |
| 10 | 0.6 | 0.6CDR10F-L | 0.6CDR10FH-L | 0.6CDR10F101-L | / | / | 按客戶要求 |
| 1.0 | 1.0CDR10F-L | 1.0CDR10FH-L | 0.6CDR10F101-L | / | / | ||
| 1.6 | 1.6CDR10F-L | 1.6CDR10FH-L | 0.6CDR10F101-L | / | / | ||
| 2.5 | 2.5CDR10F-L | 2.5CDR10FH-L | 0.6CDR10F101-L | / | / | ||
| 4.0 | / | / | / | 4.0CDR10F201-L | 4.0CDR10F202-L | ||
| 6.4 | / | / | / | 6.4CDR10F201-L | 6.4CDR10F202-L | ||
| 15 | 0.6 | 0.6CDR15F-L | 0.6CDR15FH-L | 0.6CDR15F101-L | / | / | |
| 1.0 | 1.0CDR15F-L | 1.0CDR15FH-L | 0.6CDR15F101-L | / | / | ||
| 1.6 | 1.6CDR15F-L | 1.6CDR15FH-L | 0.6CDR15F101-L | / | / | ||
| 2.5 | 2.5CDR15F-L | 2.5CDR15FH-L | 0.6CDR15F101-L | / | / | ||
| 4.0 | / | / | / | 4.0CDR15F201-L | 4.0CDR15F202-L | ||
| 6.4 | / | / | / | 6.4CDR15F201-L | 6.4CDR15F202-L | ||
| 20 | 0.6 | 0.6CDR20F-L | 0.6CDR20FH-L | 0.6CDR20F101-L | / | / | |
| 1.0 | 1.0CDR20F-L | 1.0CDR20FH-L | 0.6CDR20F101-L | / | / | ||
| 1.6 | 1.6CDR20F-L | 1.6CDR20FH-L | 0.6CDR20F101-L | / | / | ||
| 2.5 | 2.5CDR20F-L | 2.5CDR20FH-L | 0.6CDR20F101-L | / | / | ||
| 4.0 | / | / | / | 4.0CDR20F201-L | 4.0CDR20F202-L | ||
| 6.4 | / | / | / | 6.4CDR20F201-L | 6.4CDR20F202-L | ||
| 25 | 0.6 | 0.6CDR25F-L | 0.6CDR25FH-L | 0.6CDR25F101-L | / | / | |
| 1.0 | 1.0CDR25F-L | 1.0CDR25FH-L | 0.6CDR25F101-L | / | / | ||
| 1.6 | 1.6CDR25F-L | 1.6CDR25FH-L | 0.6CDR25F101-L | / | / | ||
| 2.5 | 2.5CDR25F-L | 2.5CDR25FH-L | 0.6CDR25F101-L | / | / | ||
| 4.0 | / | / | / | 4.0CDR25F201-L | 4.0CDR25F202-L | ||
| 6.4 | / | / | / | 6.4CDR25F201-L | 6.4CDR25F202-L | ||
| 32 | 0.6 | 0.6CDR32F-L | 0.6CDR32FH-L | 0.6CDR32F101-L | / | / | |
| 1.0 | 1.0CDR32F-L | 1.0CDR32FH-L | 0.6CDR32F101-L | / | / | ||
| 1.6 | 1.6CDR32F-L | 1.6CDR32FH-L | 0.6CDR32F101-L | / | / | ||
| 2.5 | 2.5CDR32F-L | 2.5CDR32FH-L | 0.6CDR32F101-L | / | / | ||
| 4.0 | / | / | / | 4.0CDR32F201-L | 4.0CDR32F202-L | ||
| 6.4 | / | / | / | 6.4CDR32F201-Lv | 6.4CDR32F202-L | ||
| 40----400 | |||||||
| 450 | 0.6 | 0.6CDR450F-L | 0.6CDR450FH-L | 0.6CDR450FH-L | / | / | |
| 1.0 | 1.0CDR450F-L | 1.0CDR450FH-L | 1.0CDR450FH-L | / | / | ||
| 1.6 | 1.6CDR450F-L | 1.6CDR450FH-L | 1.6CDR450FH-L | / | / | ||
| 2.5 | 2.5CDR450F-L | 2.5CDR450FH-L | 2.5CDR450FH-L | / | / | ||
| 500 | 0.6 | 0.6CDR500F-L | 0.6CDR500FH-L | 0.6CDR500FH-L | / | / | |
| 1.0 | 1.0CDR500F-L | 1.0CDR500FH-L | 1.0CDR500FH-L | / | / | ||
| 1.6 | 1.6CDR500F-L | 1.6CDR500FH-L | 1.6CDR500FH-L | / | / | ||
| 2.5 | 2.5CDR500F-L | 2.5CDR500FH-L | 2.5CDR500FH-L | / | / | ||
| 600 | 0.6 | 0.6CDR600F-L | 0.6CDR600FH-L | 0.6CDR600FH-L | / | / | |
| 1.0 | 1.0CDR600F-L | 1.0CDR600FH-L | 1.0CDR600FH-L | / | / | ||
| 1.6 | 1.6CDR600F-L | 1.6CDR600FH-L | 1.6CDR600FH-L | / | / | ||
