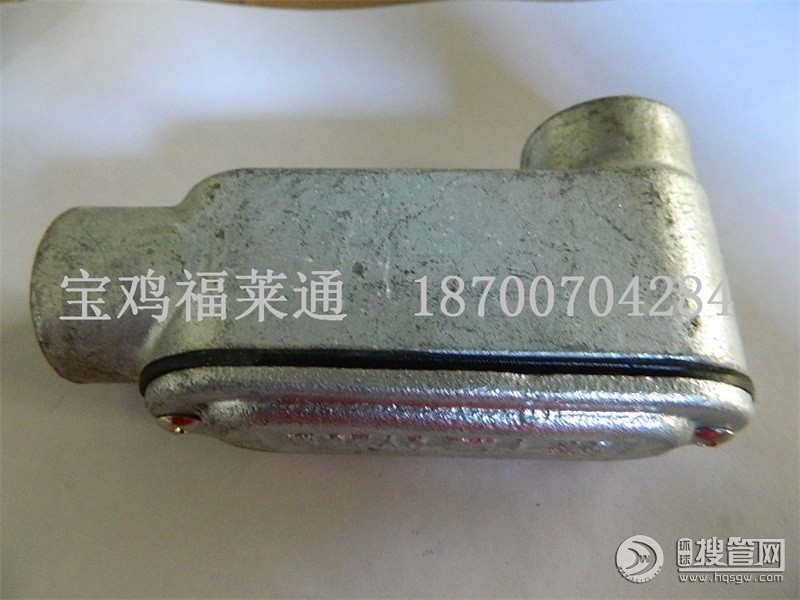

拐角盒 LB型 鍍鋅可鍛鑄鐵 增安型防爆 G15 NPT x 2
產品說明
Conduit Outlet Body (Condulet) is used in electrical raceways to connect the conduits and provide access to conductors for future maintenance. Casted in high grade malleable iron, Conduit Outlet Body has high strength compared to other base metals. Available in LB, LL, LR, TC, TB, this Conduit Outlet Body comes furnished with gasket and steel cover. Conduit Outlet Body is available in sizes from 1/2 inches upto 6 inches.
Material :
•Malleable Iron Finish
•Hot dipped Galvanized
產品名稱：出口可鍛鑄鐵穿線盒/防爆穿線盒
Productname:Export type malleable iron threading box
產品型號：直通（C）、左彎（LL）、右彎（LR）、后彎（LB）、三通（T）、后三通（TB）
Theproductmodel：Through（C）、Left(LL)、Right(LR)、after the bend(LB)、Three(T)、after the three bend(TB).
材質：穿線盒體和盒蓋為熱浸鋅可鍛鑄鐵；螺絲材質為不銹鋼304；墊圈材質為橡膠。
Texture of material:The body and a box cover for malleable iron;screws made of 304 staintess steel;the gasket material for rubber.
螺紋形式：NPT螺紋、G螺紋。
The thread form：NPT thread,G thread.
表面處理：采用熱浸鍍鋅工藝，鍍層厚度≥79μm。
Surface treatment：The hot-dip galvanizing process,zinc layer thickness≥79μm.
防護等級：IP67。
Protection class：IP67.
主體數據不含蓋子：
The main data without cover：
|
型號 |
|
1/2” |
3/4” |
1” |
1-1/2” |
2” |
|
T |
長：L |
132 |
149 |
178 |
246 |
275 |
|
寬：B |
55 |
40 |
69 |
95 |
84 |
|
|
高：H |
39 |
57.5 |
46 |
67 |
114 |
|
|
TB |
長：L |
132 |
149 |
178 |
242 |
275 |
|
寬：B |
36 |
39 |
46 |
64 |
114 |
|
|
高：H |
39 |
59 |
49 |
97 |
84 |
|
|
LB |
長：L |
132 |
130.5 |
155 |
210 |
276 |
|
寬：B |
36 |
39 |
46 |
64 |
84 |
|
|
高：H |
58 |
60.5 |
74 |
98.5 |
114 |
|
|
LR |
長：L |
132 |
130.5 |
155 |
215 |
275.6 |
|
寬：B |
38 |
57.5 |
69 |
94.3 |
111 |
|
|
高：H |
36 |
40.5 |
46 |
70.5 |
84 |
|
|
LL |
長：L |
132 |
130.5 |
155 |
215 |
275.6 |
|
寬：B |
36 |
57.5 |
69 |
94.3 |
111 |
|
|
高：H |
38 |
40.5 |
46 |
70.5 |
84 |
|
|
C |
長：L |
132 |
149 |
178 |
246.4 |
275.6 |
|
寬：B |
36 |
39 |
64 |
66 |
84 |
|
|
高：H |
38 |
40.5 |
46 |
68 |
83 |
